Portworx on SUSE Virtualization: one disk per node, PX-StoreV2 and a Windows golden image

Portworx Enterprise 3.7.1 now runs on a three-node SUSE Virtualization (Harvester) 1.9 cluster in my lab. Each node has exactly one spare SATA SSD, so I split it into a 64 GiB metadata partition and a data partition. Portworx’s newer datastore, PX-StoreV2, accepted that layout even though every example in the docs uses a whole disk. A sysprepped Windows Server 2022 golden image now lives on a Portworx volume, and a VM cloned from it live-migrates between nodes in 23 seconds.

This post covers the install step by step, including the parts the Portworx docs leave out, and explains how the Windows image is built.

Setup

Pick the Portworx version from the kernel, not the other way round. Portworx’s supported kernels page lists SUSE Linux Micro 6.2 with kernel 6.12.0-160000.37 only for Portworx 3.6.2, 3.7.0 and 3.7.1. Older releases don’t list SUSE Linux Micro at all, so compare uname -r on a node against that page first.

Before this, the SSDs held LINBIT SDS (LINSTOR and DRBD). If you’re replacing another storage stack, make sure the disk is really free: the LINBIT operator leaves DRBD devices up and its out-of-tree kernel modules loaded after it’s removed. I ran drbdsetup down all from a privileged pod (SUSE Virtualization doesn’t ship drbd-utils), unloaded the modules with rmmod, and then wiped the disk with vgremove, wipefs and blkdiscard.

Step 1: Partition the disk

PX-StoreV2 needs a metadata device of at least 64 GB on every node. With the internal KVDB (the key-value database Portworx uses for cluster state), KVDB data lives on that device too. With one disk per node, the metadata device has to be a partition:

sgdisk -o -n1:0:+64G -t1:8300 -c1:px-meta \
          -n2:0:0    -t2:8300 -c2:px-data /dev/sda

Refer to the partitions by label in the StorageCluster, not as /dev/sdaN. On SUSE Virtualization, Longhorn v1 volumes attached to a node also appear as sdX devices, so device names can change between boots. /dev/disk/by-partlabel/px-meta and px-data stay the same on every node, which also keeps the spec to a single storage block.

Portworx documents partitions as valid data devices; for the metadata device the docs only say “dedicated drive”. A partition works on 3.7.1, as the output in step 4 shows.

Step 2: Prepare the hosts

Multipath denylist. The SUSE Virtualization install page asks you to keep multipath away from Portworx devices. SUSE Virtualization’s root filesystem is immutable, so host files are written at boot through a Harvester CloudInit resource. This one writes the denylist on every node:

apiVersion: node.harvesterhci.io/v1beta1
kind: CloudInit
metadata:
  name: portworx-multipath
spec:
  matchSelector:
    harvesterhci.io/managed: "true"
  filename: 95_portworx.yaml
  contents: |
    name: "Portworx multipath denylist"
    stages:
      initramfs:
        - files:
            - path: /etc/multipath/conf.d/99-portworx.conf
              permissions: 0644
              owner: 0
              group: 0
              content: |
                blacklist {
                  devnode "^pxd[0-9]*"
                  devnode "^pxd*"
                  device {
                    vendor "Pure"
                    product "PX-*"
                  }
                }

Harvester copies the file to /oem/95_portworx.yaml on each matching node, and the initramfs stage recreates /etc/multipath/conf.d/99-portworx.conf on every boot. I confirmed the file was in place after a node rebooted. Check the rollout with kubectl get cloudinit portworx-multipath -o jsonpath='{.status}'.

Containerd socket path. The operator bind-mounts RKE2’s socket, /run/k3s/containerd/containerd.sock, onto /run/containerd/containerd.sock in the Portworx pod. If that host path exists as a directory, which an earlier pod’s hostPath mount can leave behind, every Portworx pod crash-loops with:

error mounting "/run/k3s/containerd/containerd.sock" to rootfs at
"/run/containerd/containerd.sock": ... not a directory

Check each node with stat /run/containerd/containerd.sock and remove an empty directory with sudo rmdir. /run is tmpfs, so a reboot clears it too.

Host packages. PX-StoreV2 needs mdadm, dmsetup, lvm2 and the thin provisioning tools. SUSE Virtualization 1.9 already includes all of them.

Step 3: Install the operator and the StorageCluster

Generate the operator manifest from install.portworx.com and apply it:

curl -o px-operator.yaml \
  "https://install.portworx.com/3.7?comp=pxoperator&kbver=1.36.3&ns=portworx"
kubectl apply -f px-operator.yaml

Then create the StorageCluster:

kind: StorageCluster
apiVersion: core.libopenstorage.org/v1
metadata:
  name: px-cluster
  namespace: portworx
  annotations:
    portworx.io/misc-args: "-T px-storev2"
spec:
  image: docker.io/portworx/oci-monitor:3.7.1
  imagePullPolicy: IfNotPresent
  kvdb:
    internal: true
  storage:
    devices:
      - /dev/disk/by-partlabel/px-data
    systemMetadataDevice: /dev/disk/by-partlabel/px-meta
  secretsProvider: k8s
  stork:
    enabled: true
    args:
      webhook-controller: "true"
  autopilot:
    enabled: false
  csi:
    enabled: true
  monitoring:
    telemetry:
      enabled: false
    prometheus:
      enabled: false
      exportMetrics: true

Three settings in that spec matter on SUSE Virtualization:

• -T px-storev2 selects PX-StoreV2. On bare metal the operator skips its pre-install check, and only that check selects V2 automatically. I found this in the operator source, not in the docs. (-T dmthin is a deprecated alias for V2, not a way to get V1.)
• Bundled Prometheus and Autopilot are off. SUSE Virtualization’s monitoring add-on already ships prometheus-operator, and running a second one alongside it invites conflicts over the same CRDs. exportMetrics: true still creates the ServiceMonitors for whatever monitoring stack you use.
• No default I/O profile is set. See StorageClasses and I/O profiles.

Step 4: Verify the cluster

All three nodes came up with PX-StoreV2, sda1 as the metadata device and a healthy three-member KVDB (output trimmed, addresses replaced):

$ sudo /opt/pwx/bin/pxctl status
Status: PX is operational
 	Local Storage Pool: 1 pool
	POOL	IO_PRIORITY	RAID_LEVEL	USABLE	USED	STATUS	ZONE	REGION
	0	HIGH		raid0		383 GiB	16 GiB	Online	default	default
	Local Storage Devices: 1 device
	Device	Path		Media Type		Size
	0:0	/dev/sda2	STORAGE_MEDIUM_SSD	402 GiB
	Metadata Device:
	1	/dev/sda1	STORAGE_MEDIUM_SSD	64 GiB
	* Internal kvdb on this node is using this dedicated metadata device to store its data.
Cluster Summary
	Total Nodes: 3 node(s) with storage (3 online)
	IP		SchedulerNodeName	StorageNode	Capacity	Status	Version		OS
	192.0.2.11	ser5-green		Yes(PX-StoreV2)	383 GiB		Online	3.7.1.0-49ddf57	Harvester v1.9.0
	192.0.2.10	ser5-blue		Yes(PX-StoreV2)	383 GiB		Online	3.7.1.0-49ddf57	Harvester v1.9.0
	192.0.2.12	ser5-purple		Yes(PX-StoreV2)	383 GiB		Online	3.7.1.0-49ddf57	Harvester v1.9.0
Global Storage Pool
	Total Capacity	:  1.1 TiB

On the data partition, PX-StoreV2 builds an md array with an LVM thin pool on top (trimmed):

$ lsblk -o NAME,SIZE,PARTLABEL /dev/sda
NAME                          SIZE PARTLABEL
sda                         465.8G
├─sda1                         64G px-meta
└─sda2                      401.8G px-data
  └─md127                   401.6G
    ├─pwx0-pxpool_tmeta         2G
    │ └─pwx0-pxpool-tpool   382.6G
    └─pwx0-pxpool_tdata     382.6G

Step 5: Activate the license

A new install runs a 30-day trial. Activation is one command from any Portworx pod and needs outbound HTTPS to Portworx’s license server (flex1327.compliance.flexnetoperations.com):

kubectl -n portworx exec <px-pod> -c portworx -- \
  /opt/pwx/bin/pxctl license activate <activation-id>

Run it once; it applies to the whole cluster. Confirm with pxctl license list.

If the license server doesn’t answer, the command blocks. Portworx retries up to six times, 60 seconds each, while holding the cluster license lock, and after 5 minutes the daemon on that node panics with Lock held beyond configured timeout and restarts. On my first attempt that happened even though curl from the same node reached the server in 0.3 seconds. Both other nodes kept serving I/O, and a retry the next day succeeded in 2 seconds. Treat a hung activation as a node outage and don’t retry it in a loop.

StorageClasses and I/O profiles

Portworx’s operator creates eight StorageClasses, all combinations of three settings:

Three of them work without further setup: px-csi-replicated, px-csi-db and px-csi-db-local-snapshot. Encrypted classes need a cluster-wide key first (pxctl secrets set-cluster-key), and cloud snapshots need object-store credentials (pxctl credentials create). Until you add those, expect encrypted volumes not to provision and cloud snapshots to fail.

Each px-csi-db* class also sets io_profile: db_remote. That profile coalesces the syncs that arrive within 100 ms and acknowledges them once the data is in memory on every replica. It cuts sync latency for databases and Windows guests, and it assumes that all replicas won’t fail within the same 100 ms. In a small lab where every node shares the same power and switch, weigh that before using it. See IO profiles.

Classes without an io_profile use the cluster default. Portworx documents auto (which picks db_remote for volumes with two or more replicas), but my cluster came up with none because the StorageCluster didn’t set one. Check with pxctl cluster options list and set the default explicitly either way.

Building a Windows golden image on Portworx

A golden image is a generalized Windows install that every new VM clones. I build mine with the harvester-windows-cloudbase pipeline. Its VM templates are described in Windows VMs on SUSE Virtualization.

How the pipeline works

1. Unattended install. A build VM boots the Windows Server 2022 evaluation ISO with an autounattend.xml answer file, delivered through KubeVirt’s sysprep volume. The answer file loads the virtio drivers from SUSE’s VMDP (Virtual Machine Driver Pack) CD and installs onto a virtio-scsi disk, here a 36 GiB px-csi-replicated volume.
2. First-logon bootstrap. A PowerShell script embedded in the answer file installs VMDP and Cloudbase-Init, the Windows counterpart of cloud-init.
3. Generalize. The script runs sysprep /generalize /oobe /shutdown, which strips the machine identity so every clone gets its own. Once it’s done, the VM powers off, about 17 minutes after boot.
4. Shrink and register. A Kubernetes Job attaches the stopped disk, shrinks the NTFS partition to its minimum, converts it to a compact qcow2 and uploads it as a CDI-backed image on px-csi-replicated.

Keep the build frozen until sysprep

sysprep /generalize refuses to run if any Microsoft Store (AppX) app is installed for one user but not provisioned for all users; the error is 0x80073cf2 in C:\Windows\System32\Sysprep\Panther\setuperr.log. A fresh install is consistent, but the build VM has internet access, and anything that updates an app for the logged-on Administrator breaks that consistency.

Windows Update and the Store are the obvious updaters. Chromium Edge has a third one, Edge Update, with its own services (edgeupdate, edgeupdatem) and MicrosoftEdgeUpdate* scheduled tasks. On Server 2022 it updated Edge mid-build. My answer file now stops Edge Update and Windows Update in the specialize pass, which runs as SYSTEM before the first logon, and the bootstrap script also blocks Store updates. A SetupComplete.cmd script turns all of them back on in every clone.

Mind the sector size

Portworx block devices report 4096-byte logical sectors on the host. Inside the VM, Windows still sees 512-byte sectors (the QEMU default), so it writes the partition table in 512-byte units. Windows boots fine, but host-side Linux tools such as parted and kpartx read every partition offset as eight times too large. Any tool that edits the image from the host needs a 512-byte view of the volume:

loop=$(losetup -f)
losetup --sector-size 512 "$loop" /dev/src   # /dev/src = the PVC attached as a block device

My shrink Job does this automatically when the device isn’t 512. Both changes are in commit 3c13551.

Use it

Out came a 12.3 GiB image (9.27 GiB on disk). A test VM cloned it onto a 40 GiB ReadWriteMany block volume. On first boot, Cloudbase-Init extended C: to 39.5 GiB and applied the hostname from its cloud-config, which takes effect at the next reboot. Next, the VM live-migrated from one node to another in 23 seconds. Live migration needs ReadWriteMany block access, and Portworx provides it as a shared block device with no extra setup.

Observability with SUSE Observability

Portworx’s own dashboards are Grafana dashboards fed by Prometheus. My cluster sends telemetry to SUSE Observability instead, so I wrote a Portworx StackPack for it: StackVista/contrib-stackpacks#35, currently in review.

It reads the StorageCluster and StorageNode custom resources for topology and scrapes Portworx metrics through the agent’s OpenTelemetry collector, so no Prometheus server is needed. Storage nodes merge into their Kubernetes nodes, and Portworx volumes merge into their persistent volumes. It adds 20 monitors, most of them ports of the Portworx operator’s alert rules, plus cluster, volume and node dashboards modelled on Portworx’s Grafana ones.

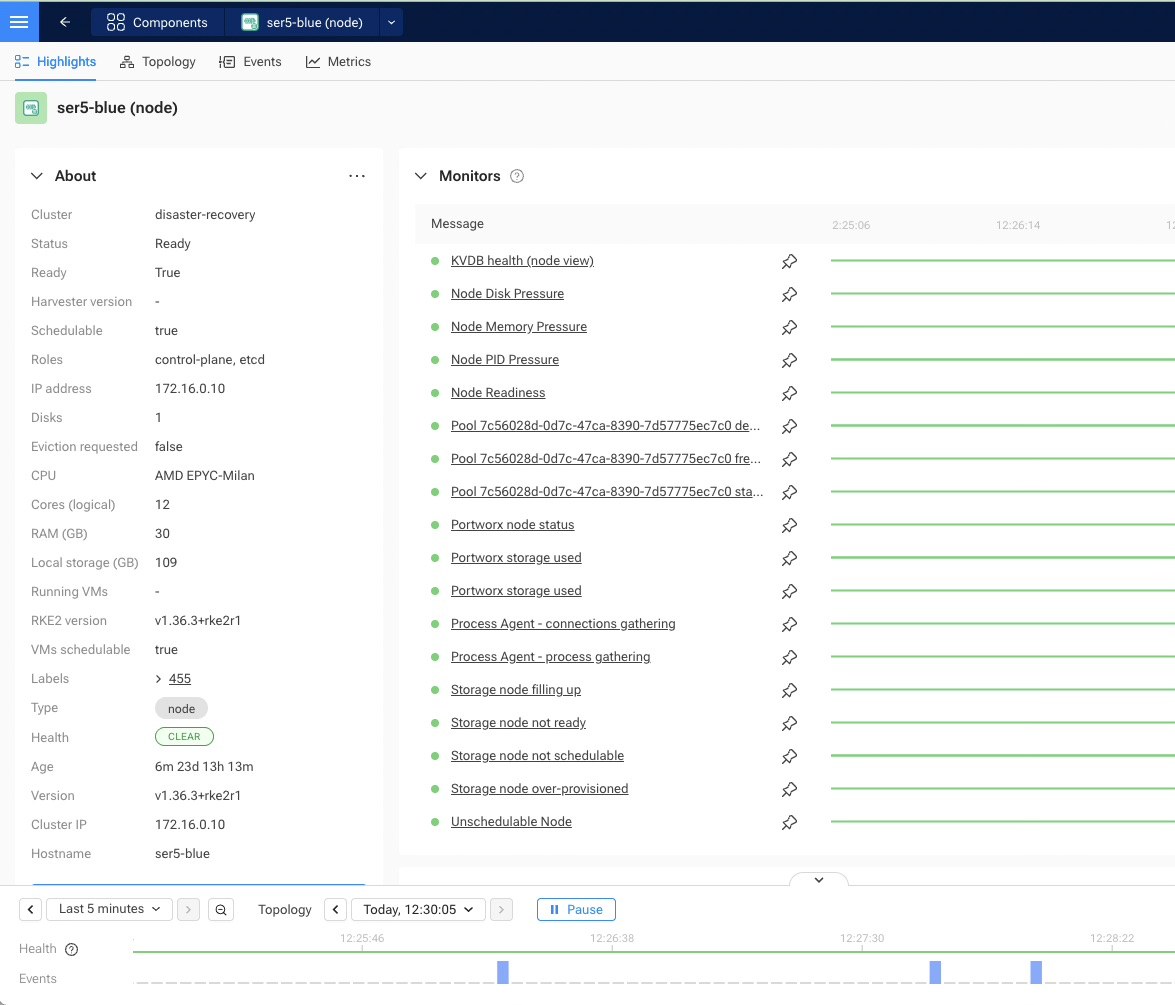

Portworx monitors such as KVDB health, pool state and storage usage appear on the Kubernetes node itself, next to the standard node checks.

Troubleshooting

/etc/pwx on the tmpfs overlay. SUSE Virtualization keeps /etc on a tmpfs overlay and persists only a fixed list of paths, and /etc/pwx isn’t on it. I tried adding it with a second CloudInit file that overrides PERSISTENT_STATE_PATHS. After a node rebooted, the boot log showed the step running, but Harvester’s own list won and /etc/pwx came back empty. Portworx recovered anyway: the node rejoined with the same node ID and cluster UUID, rebuilt config.json from the StorageCluster spec and found its pool on the disk. Don’t copy that override; it has no effect.

Longhorn space during image builds. CDI stages uploads in a scratch volume on the cluster’s default StorageClass, harvester-longhorn. If Longhorn is short on space, size the ISO clone just above the ISO itself (6 GiB for the 4.7 GiB Server 2022 ISO, not 20 GiB) and delete the clone before the upload.

Image display names. SUSE Virtualization 1.9 copies an image’s display name into a label, so a display name with spaces is rejected. Keep it short.

Takeaways

• One disk per node is enough for PX-StoreV2: give it a 64 GiB metadata partition and the rest for data, and refer to both by partition label.
• Choose the Portworx version from the kernel table, force -T px-storev2 on bare metal, and turn off the bundled Prometheus on SUSE Virtualization.
• Set the default I/O profile explicitly, and create the encryption key and cloud credentials before using those StorageClasses.
• For Windows images, freeze every updater, Edge Update included, until sysprep has run, and use a 512-byte view when editing Portworx volumes from the host.
